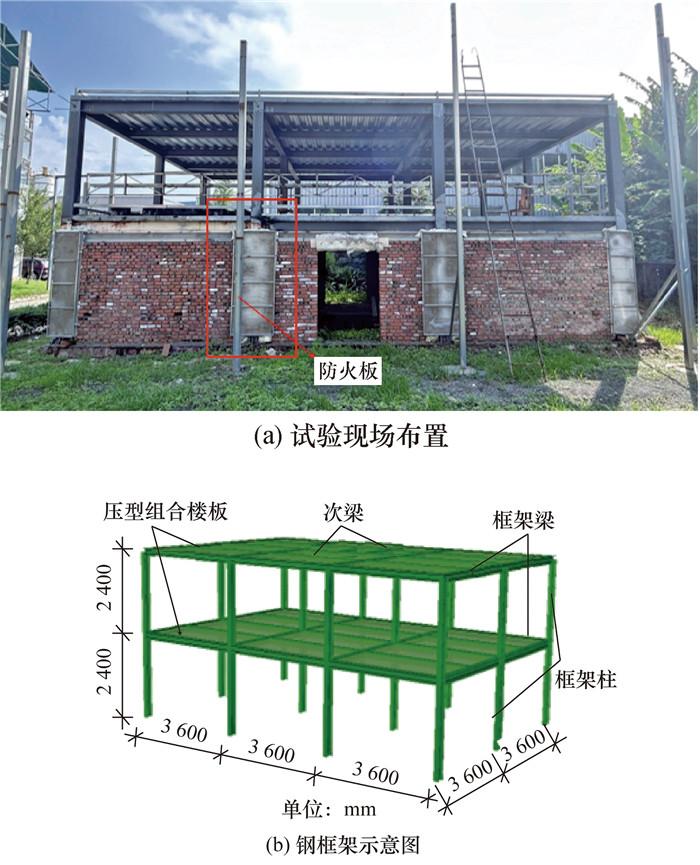

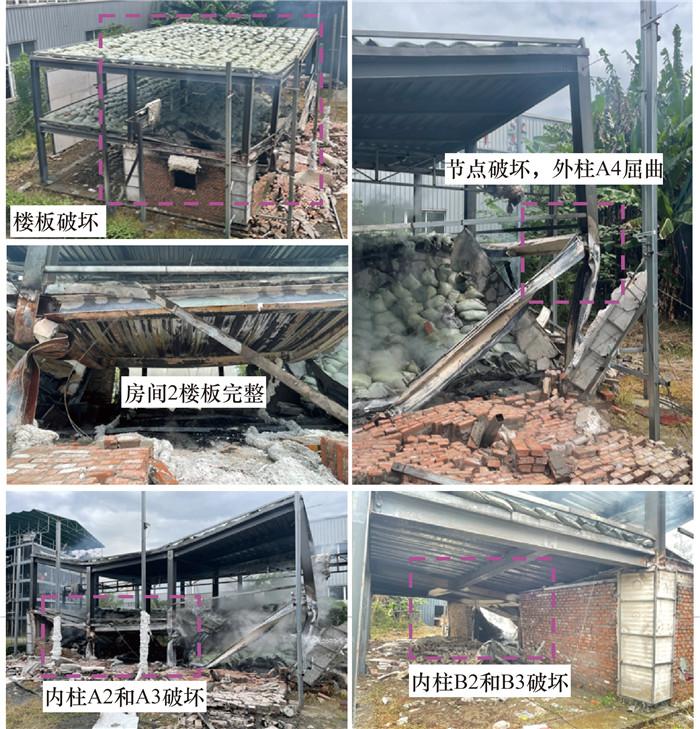

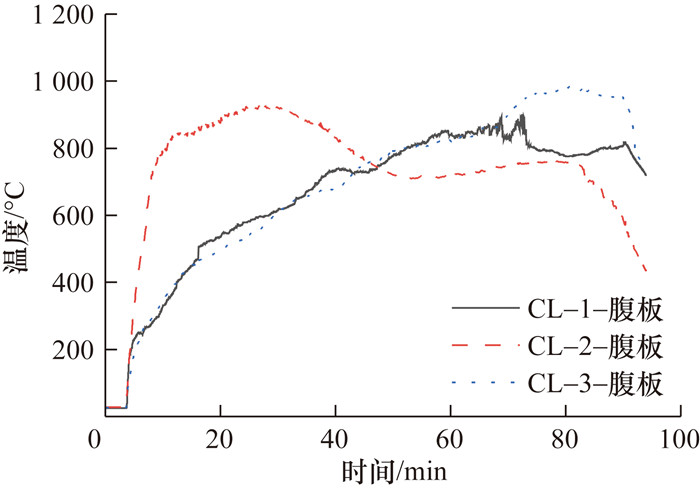

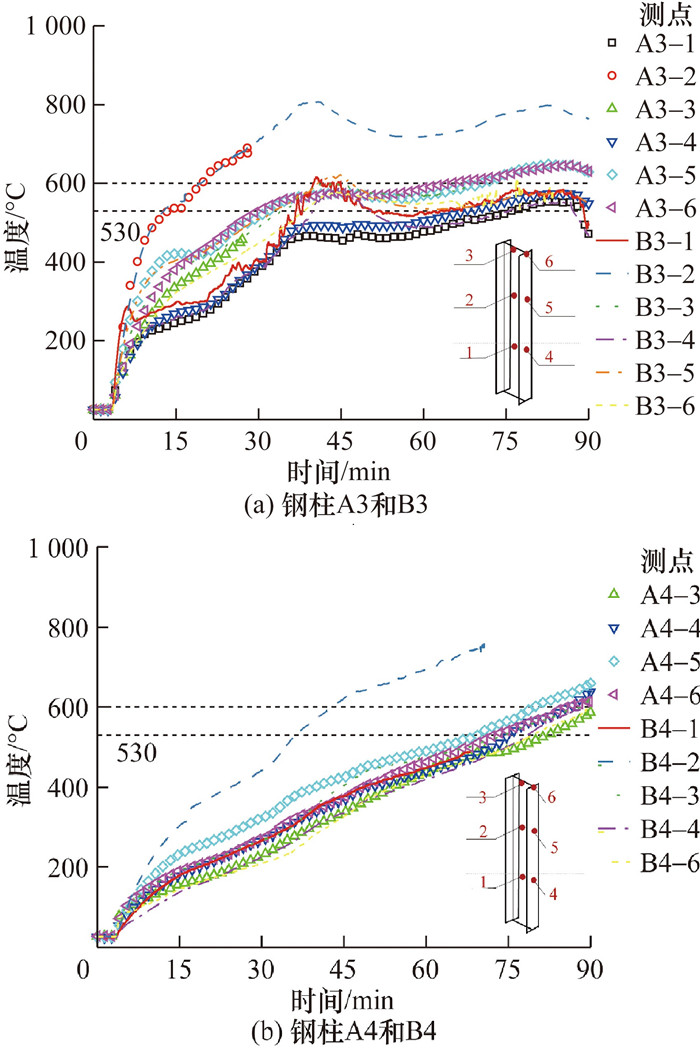

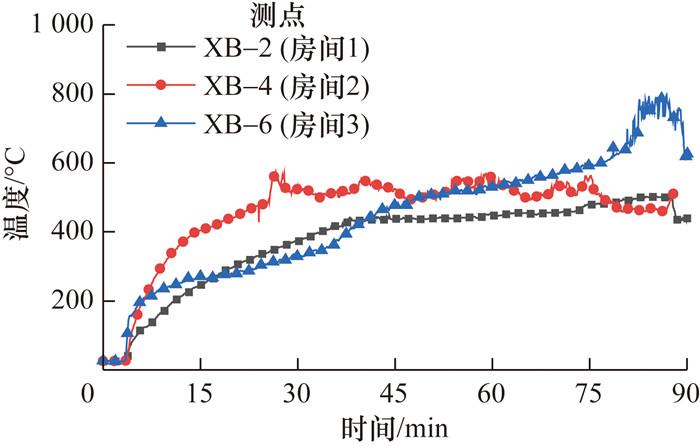

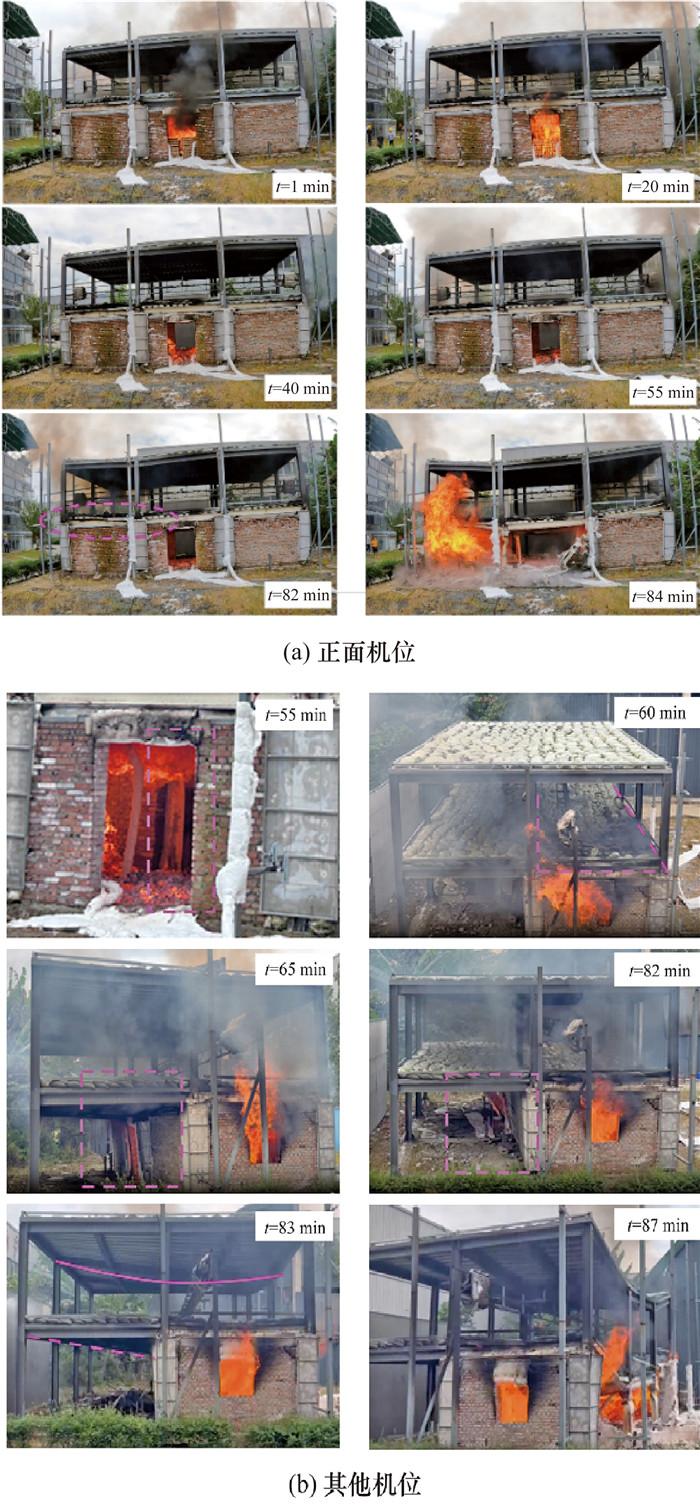

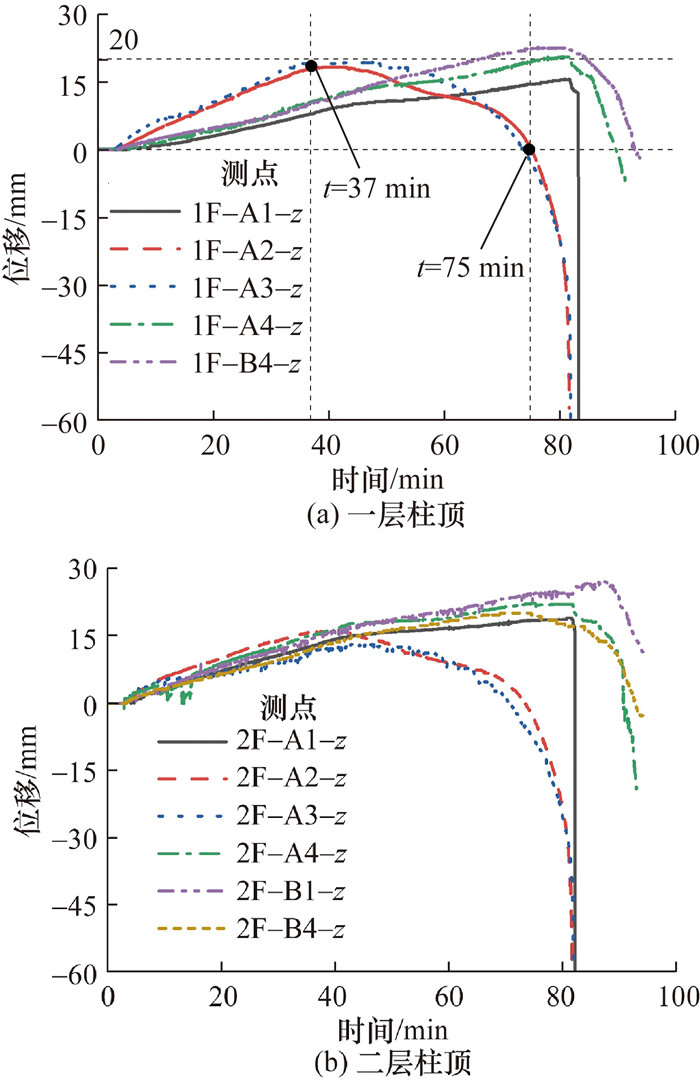

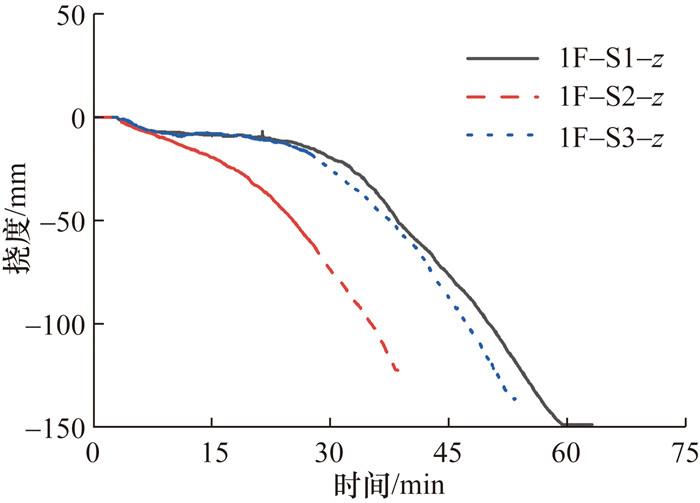

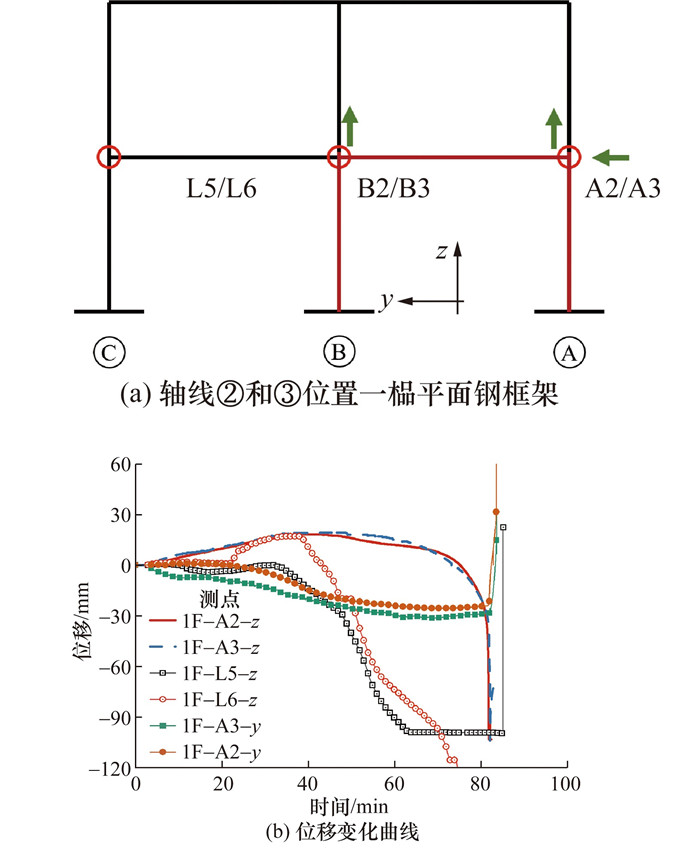

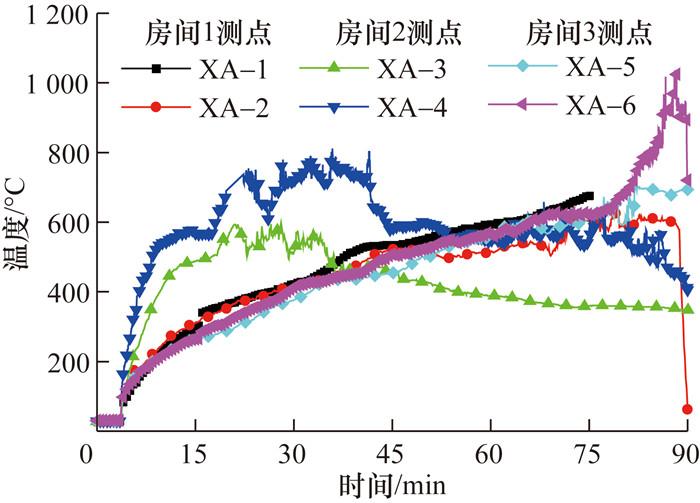

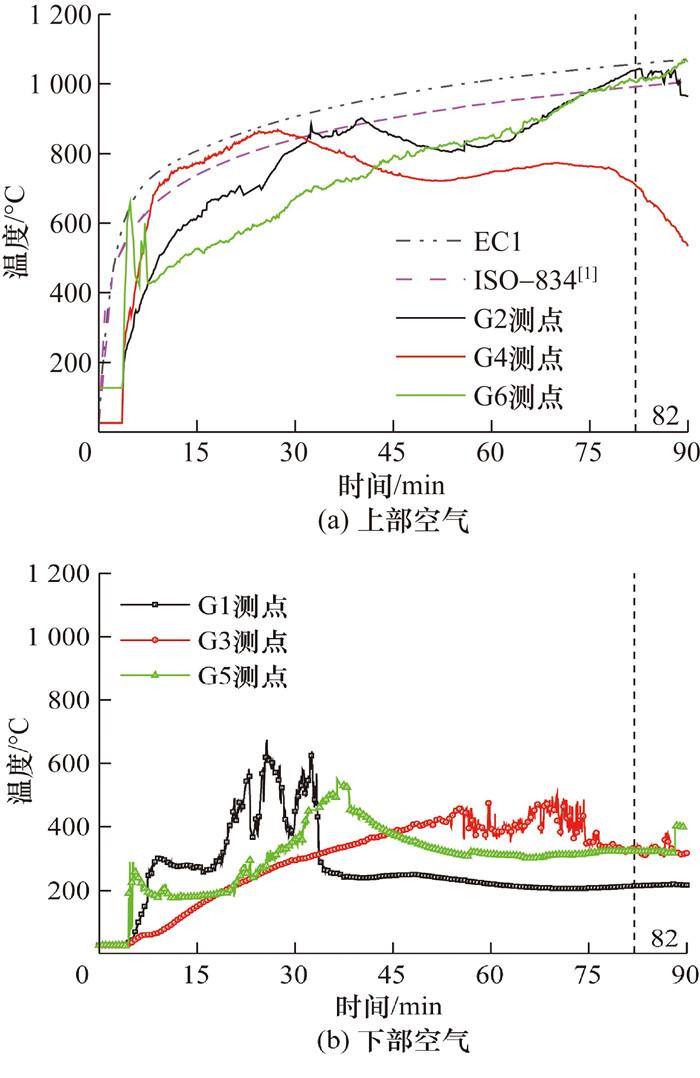

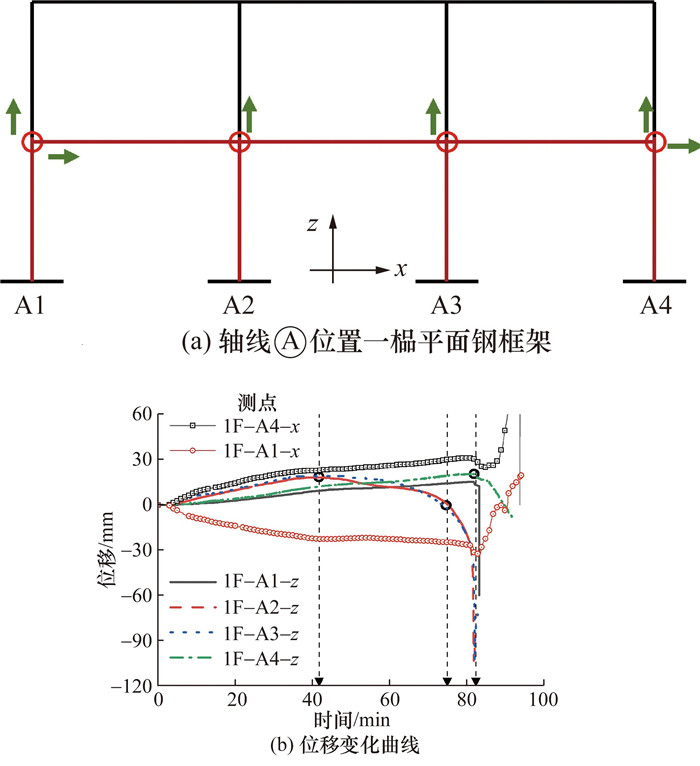

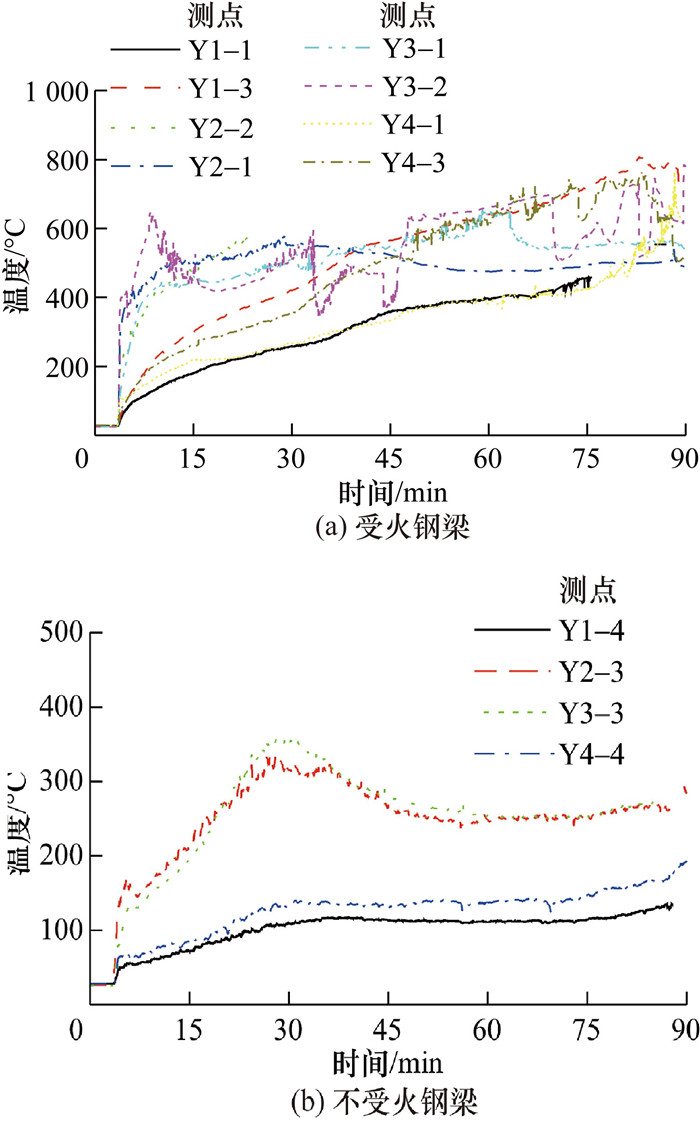

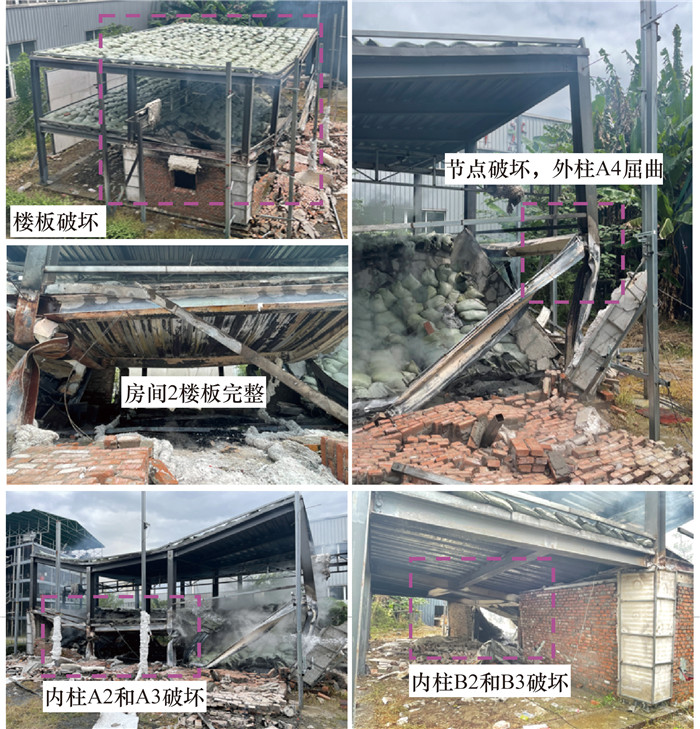

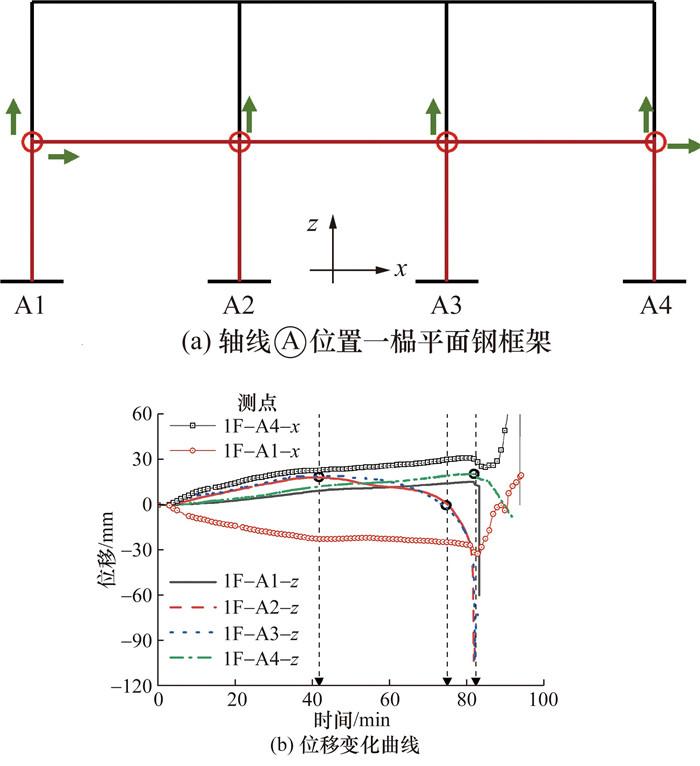

为研究真实火灾场景下钢框架结构的倒塌演化特征, 对一个两层三跨钢框架结构进行了底层房间受火试验, 实时获取了火场温度场、关键构件温度及结构三维位移响应数据, 并观测了钢框架结构受火至倒塌全过程的试验现象。试验结果表明：门洞导致的通风效应使中间房间上部烟气温度在受火15 min内达到800℃, 并形成显著的温度梯度; 受火楼板与钢梁在受火36 min时最大竖向位移为120 mm, 薄膜效应的存在使其保持了一定的承载能力; 试验框架在受火82 min后发生整体倒塌, 倒塌时框架最高温度约为900℃。钢框架结构整个火灾倒塌过程呈现3阶段特征：初始阶段(受火0~45 min), 内部钢柱因轴向荷载和快速升温(12℃/min)产生屈曲; 扩展阶段(受火45~68 min), 荷载重分布导致相邻柱轴向力骤增; 最终阶段(受火68~82 min), 钢框架呈内跨下沉式倒塌。该试验验证了钢柱失效是冗余框架结构火灾倒塌的主控因素, 揭示了基于构件失效顺序的倒塌特征。

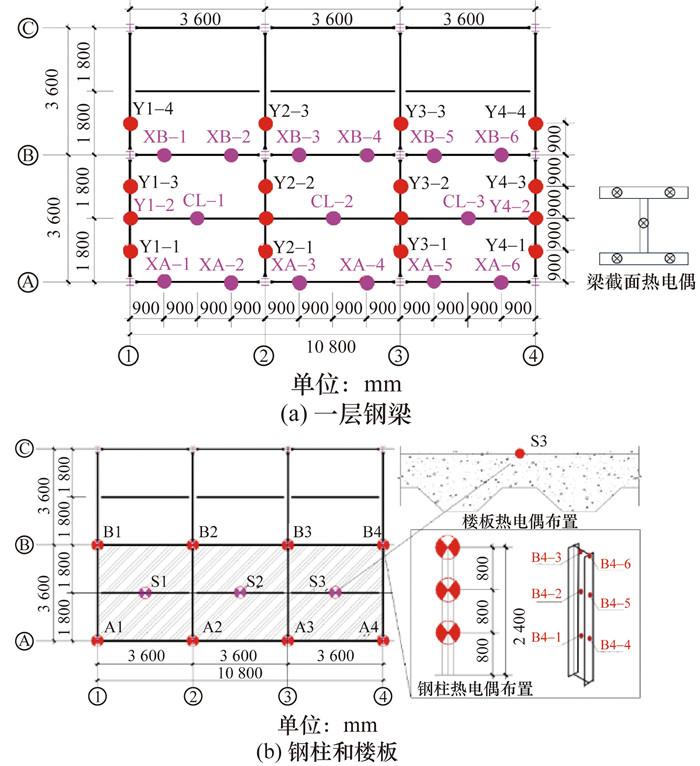

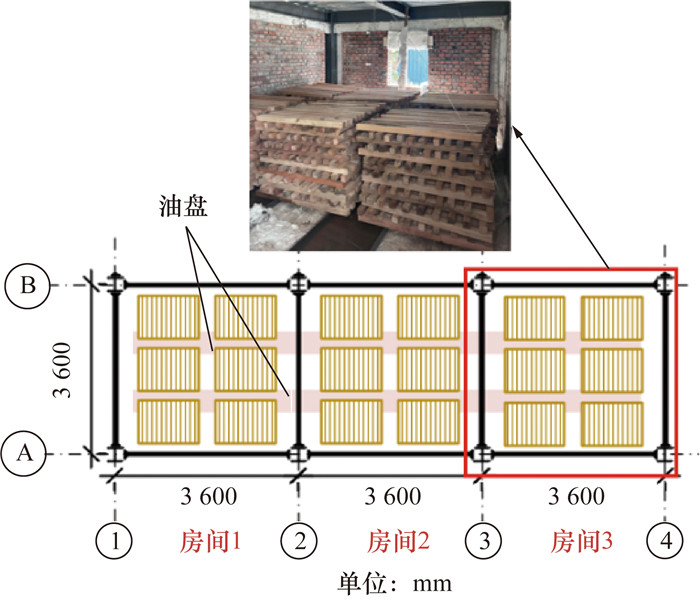

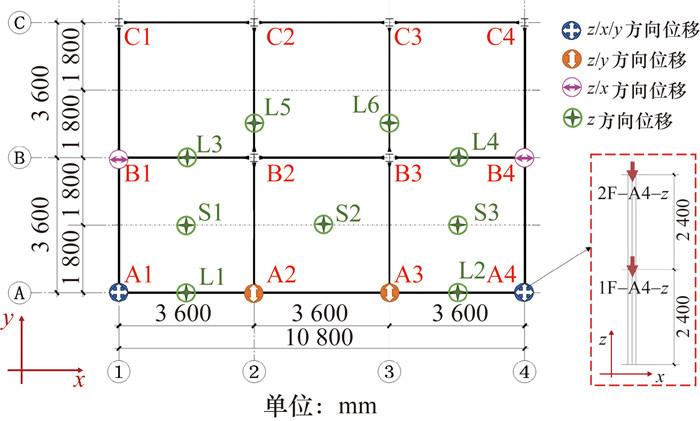

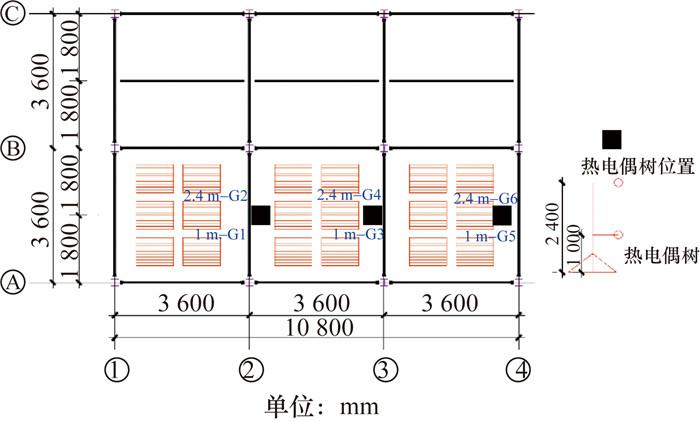

Objective: Steel frame structures are highly vulnerable to collapse during fire, posing severe threats to occupant safety and property protection. As reliable methods for assessing structural performance under fire exposure, fire tests are essential for elucidating structural response mechanisms. However, constrained by budgetary limitations and logistical challenges, most contemporary fire tests on steel frame structures primarily focus on evaluating structural integrity under fire conditions, rarely progressing to the collapse stage. This limitation hinders a comprehensive understanding of steel structure collapse mechanisms under fire, emphasizing the urgent need for systematic investigation. Methods: To explore the collapse evolution mechanisms of steel frame structures under real-fire scenarios, a reduced scale experimental fire test was conducted on a two-story, three-span steel frame structure, subjecting the bottom-floor compartment to fire exposure. Real-time data were collected, including temperature distribution within the structure, thermal responses of critical structural components, and three-dimensional displacement behavior of the structure. The experimental process was meticulously documented, capturing the entire progression from fire ignition to structural collapse. Results: The key findings of the test were the following: (1) The localized strong ventilation effect induced by the open doorway significantly accelerated the combustion rate of the wooden crib in the central room among the three rooms side by side, leading to asymmetric fire propagation from the central room toward adjacent areas; (2) The test frame experienced global collapse at 82 minutes after fire exposure, with the maximum structural temperature reaching approximately 900 ℃ at the time of collapse. The collapse occurred in three stages: Initial stage (0-45 min), where internal steel columns buckled under combined axial loading and rapid heating (12 ℃/min); Progressive stage (45-68 min), where load redistribution triggered a sharp increase in the axial forces of adjacent columns; and Final stage (68-82 min), where a progressive downward collapse occurred in the interior span, characterized by localized sunken failure. Conclusions: By analyzing the test results, the following conclusions are drawn: (1) The test validates that the failure of steel columns is the principal factor governing the fire-induced collapse of redundant steel frame structures. Furthermore, it elucidates the collapse mechanisms, which are driven by the sequential failure of critical structural components. (2) The observed fire development highlights a significant correlation between the fire propagation path within the building and ventilation conditions. When designing building ventilation systems, the influence of ventilation on fire field evolution must be thoroughly considered to reduce the potential for accelerated structural failure caused by localized strong ventilation effects. (3) The test reveals that the fire-resistance performance of the overall structural system surpasses that of individual components. To enhance fire-resistance design, structural redundancy should be strategically leveraged to mitigate vulnerabilities associated with a single load-transfer pathway. (4) The collapse mode of the tested steel frame exhibits typical characteristics of progressive sunken failure. Each buckling of internal steel columns is identified as a critical indicator for collapse warning.
